High Lifter Tie Rod Kit for Can-Am Maverick X3 900 HO (HDAS-C-02)

High Lifter Tie Rod Kit for Can-Am Maverick X3 900 HO (2017–2026) (HDAS-C-02)

Part Number: 79-15317
High Lifter SKU: HDAS-C-02

If your steering feels vague, wanders at speed, or starts getting sloppy after hard rides, tie rods are usually the first weak link. This kit is built to tighten response, improve durability, and keep your front end tracking where you point it.

Specifications

• Patented Technology
• Increased Versatility
• Increased Strength

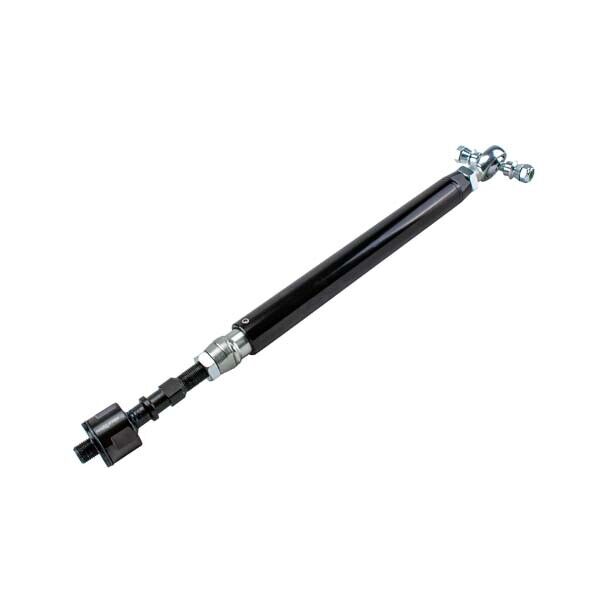

• The inner tie rod is made up of 24.5mm (15/16") diameter 7.5mm wall DOM-tubing
• The inner also uses 5/8"-11 high-strength threaded rod for fast adjustment
• The outer tie rod is 32mm (1-1/4") diameter 7mm wall DOM
• Uses 2ea ¼"-28 set-screws to lock the rods in place once they have been set to the desired length
• Powder coated and zinc plated for superior scratch and corrosion resistance
• Comes with upgraded heim-end to replace the outer factory tie rod ends
• Also includes two heavy duty inner tie rod end that connect to the rack and pinion

Fitment

• Can-Am Maverick X3 900 HO (2018)
• Can-Am Maverick X3 ds Turbo (2021)
• Can-Am Maverick X3 DS Turbo 64 (2022–2026)
• Can-Am Maverick X3 ds Turbo R (2021)
• Can-Am Maverick X3 DS Turbo RR 64 (2022–2026)
• Can-Am Maverick X3 Max ds Turbo (2021)
• Can-Am Maverick X3 MAX DS Turbo 64 (2022–2026)
• Can-Am Maverick X3 Max ds Turbo R (2021)
• Can-Am Maverick X3 MAX DS Turbo RR 64 (2022–2026)
• Can-Am Maverick X3 Max rs Turbo R (2021)
• Can-Am Maverick X3 Max Turbo (2018–2020)
• Can-Am Maverick X3 Max Turbo R (2017–2019)
• Can-Am Maverick X3 Max X ds Turbo R (2017–2020)
• Can-Am Maverick X3 Max X ds Turbo RR (2020–2021)
• Can-Am Maverick X3 Max X DS Turbo RR 64 (2022–2025)
• Can-Am Maverick X3 Max X DS Turbo RR Smart-Shox (2025)
• Can-Am Maverick X3 Max X mr Turbo RR (2020–2021)
• Can-Am Maverick X3 Max X rs Turbo R (2017–2020)
• Can-Am Maverick X3 Max X rs Turbo RR (2020–2021)
• Can-Am Maverick X3 Max X rs Turbo RR Smart-Shox (2021–2025)
• Can-Am Maverick X3 MAX X Turbo 64 (2026)
• Can-Am Maverick X3 rs Turbo R (2021)
• Can-Am Maverick X3 Turbo (2018–2020)
• Can-Am Maverick X3 Turbo MAX R XDS (2021)
• Can-Am Maverick X3 Turbo MAX R XRS (2021)
• Can-Am Maverick X3 Turbo R (2017–2019)
• Can-Am Maverick X3 X ds Turbo R (2017–2020)
• Can-Am Maverick X3 X ds Turbo RR (2020–2021)
• Can-Am Maverick X3 X ds Turbo RR 64 (2022–2025)
• Can-Am Maverick X3 X ds Turbo RR Smart-Shox 64 (2025–2026)
• Can-Am Maverick X3 X mr Turbo (2018–2021)
• Can-Am Maverick X3 X mr Turbo R (2018–2019)
• Can-Am Maverick X3 X mr Turbo RR (2020–2021)
• Can-Am Maverick X3 X mr Turbo RR 64 (2022–2026)
• Can-Am Maverick X3 X rc Turbo (2018–2021)
• Can-Am Maverick X3 X rc Turbo R (2018–2019)
• Can-Am Maverick X3 X rc Turbo RR (2020–2021)
• Can-Am Maverick X3 X rc Turbo RR 64 (2022–2026)
• Can-Am Maverick X3 X rs Turbo R (2017–2021)
• Can-Am Maverick X3 X rs Turbo RR (2020–2021)
• Can-Am Maverick X3 X rs Turbo RR Smart-Shox (2021)
• Can-Am Maverick X3 X rs Turbo RR Smart-Shox 72 (2022–2024)
• Can-Am Maverick X3 X Turbo 64 (2026)
