Dirt King Upper Arm Bushing Rebuild Kit, Chevy/GMC 1500 2007-2018 DK-631947

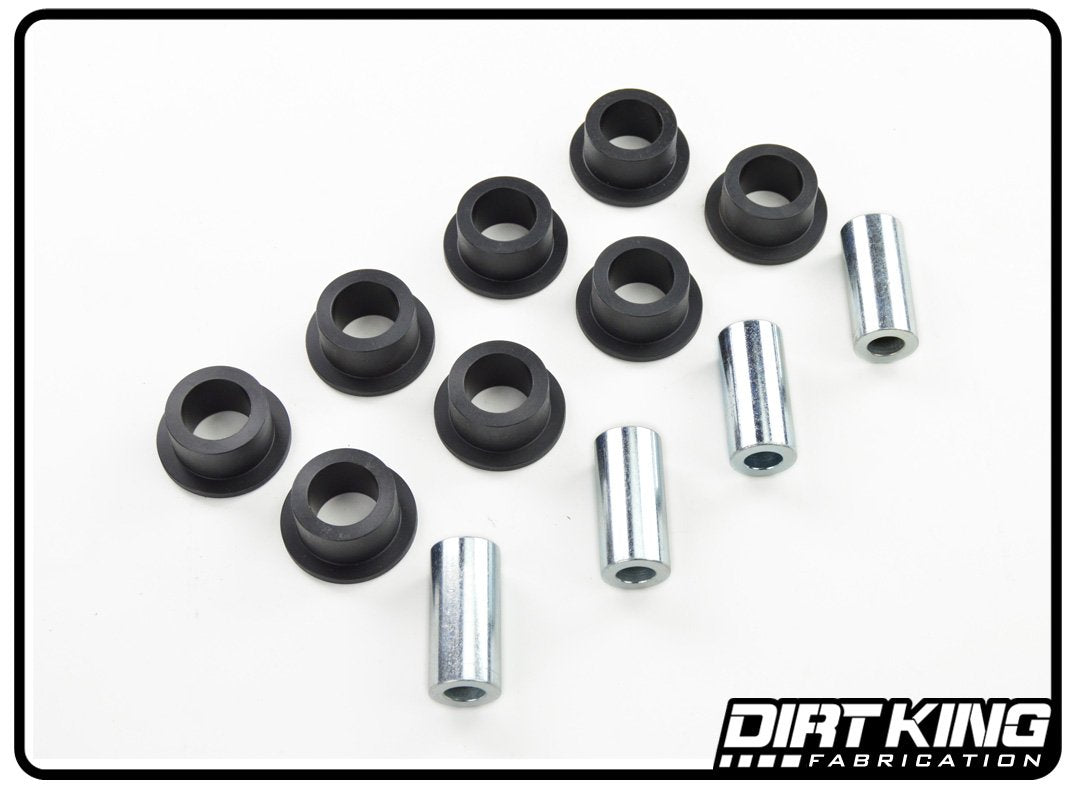

iShock is pleased to offer the Dirt King 2007-2018 Chevy/GMC 1500 Upper Arm Bushing Rebuild Kit Part Number: DK-631947. Description This rebuild kit is for a pair of upper control arms. Key Notes Standard Delrin is a highly durable plastic-like compound that can endure significant mileage and time, provided it receives proper maintenance. However, if the bushings are not adequately greased or develop dry spots, they can produce a loud, unpleasant squeak. PTFE-blended Delrin offers the advantage of being self-lubricating, resulting in reduced friction and noise. Though slightly more brittle than standard Delrin, it can still withstand substantial use over long periods with the right upkeep. What's Included • (x8) 1.5"OD x 1"ID Bushings • (x4) Inner Bushing Sleeves (Optional) • (x1) Reaming Tool (Optional) Instructions • 1. Remove Components: Remove zerk fittings, inner bushing sleeves, and old delrin bushings • 2. Clean: Thoroughly clean all old grease from the control arms • 3. Grease Application: Apply a fresh, thin layer of Prothane Super Grease to the inside of the control arm bushing sleeves • 4. Install Bushings: Use an arbor press, dead blow hammer, or rubber mallet to press in the new bushings until they are fully seated • 5. Check Fit: Test if the inner bushing sleeves can be pushed through the new bushings, by hand, with medium-light tension. If excessive force is needed, ream the bushings. • 6. Reaming (if necessary): • Use the proper size reamer to ream the bushings while they are installed on the control arms • Spin the reamer fast but make slow passes • After reaming, check again if the inner sleeve can slide through the bushing by hand. Repeat if needed • 7. Debris Removal: If reaming was done, clean out any debris from between the bushings and inside the zerk fitting hole • 8. Final Grease Application: Apply more Prothane Super Grease inside the reamed bushings, re-install the inner bushing sleeves and zerk fittings, thoroughly grease the outside of the bushings and the inside of the control arm pockets
