Dirt King Long Travel Bushing UCA's Chevy/GMC Colo/Canyon 2015-2022 DK-634908-B

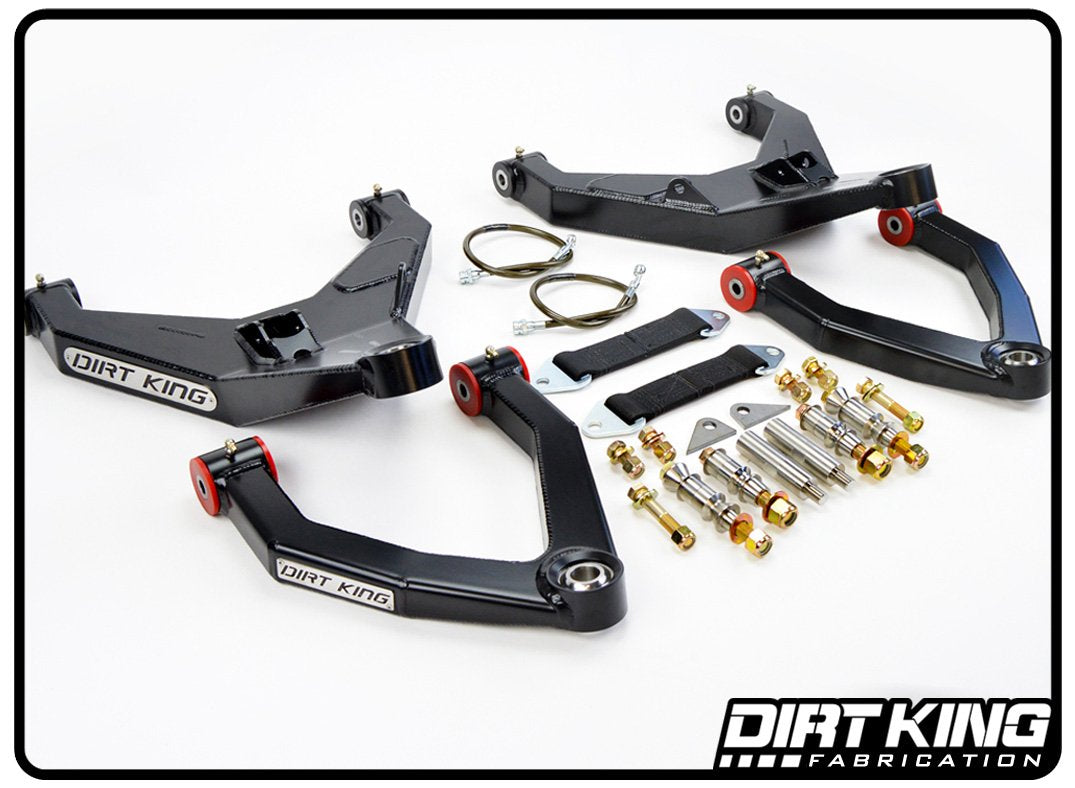

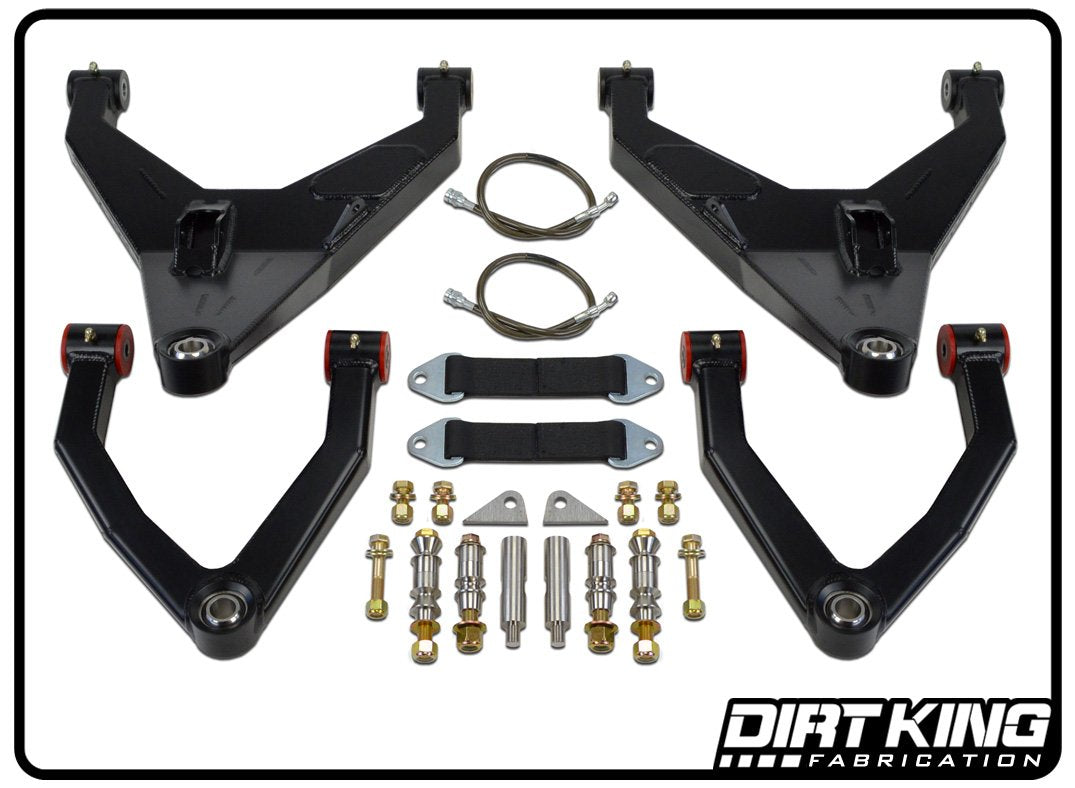

iShock is pleased to offer the Dirt King 2015-2022 Chevy/GMC Colorado / Canyon Long Travel Kit with Bushing Upper Arms Part Number: DK-634908-B. Description The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 13.5” of travel and accepts up to a 35” tire. Our upper and lower arms are designed with 1” stainless steel uniballs for the outer pivots instead of ball joints for strength and increased articulation. This kit is CAD designed, thoroughly tested, and 100% made in America resulting in a product we’re proud to put our name on! Specifications • Wheel Travel: 13.5” • Amount of Lift: 0-4” • Track Width: 3.5” wider per side • Maximum Tire Size: 35” • Maximum Backspacing: 4.75” • Minimum Rim Size: 16” • Coil over Shock Size: 2.5” x 8” (view spec sheet) • Bump Stop Size: 2.0” x 2.0” (view spec sheet) ________________________________________ Wheel Travel In order to achieve 13.5” of travel the factory bump stop must be cut off. The kit allows for 12.5” of travel without removing the bump stop. ________________________________________ Tire Info When using 35” tires with this kit modifications to the wheel wells are required. The firewall pinch weld will need to be folded over for clearance. The upper wheel well will also need to be modified to avoid contact at full bump. What's Included • Boxed plate upper control arms • Boxed plate lower control arms • 9" quad wrapped limit straps • Weld on adjustable limit strap mounts • 17-4 stainless steel misalignment spacers • 17-4 stainless steel tie rod extensions • DOT approved extended brake lines • Grade 8 mounting hardware • Probearing bearings Features • Bolt on application, minimal modifications required • Utilizes Probearing bearings • 4130 chromoly uniball cups • Polyurethane bushings for the UCA’s • Delrin bushings for the LCA’s • Zinc plated inner bushing sleeves • Grease fittings for easy servicing • 3/16" and 1/8” boxed plate construction • Internally ribbed with extrusions for weight reduction • Bump stop plating • Limit strap tabbing
