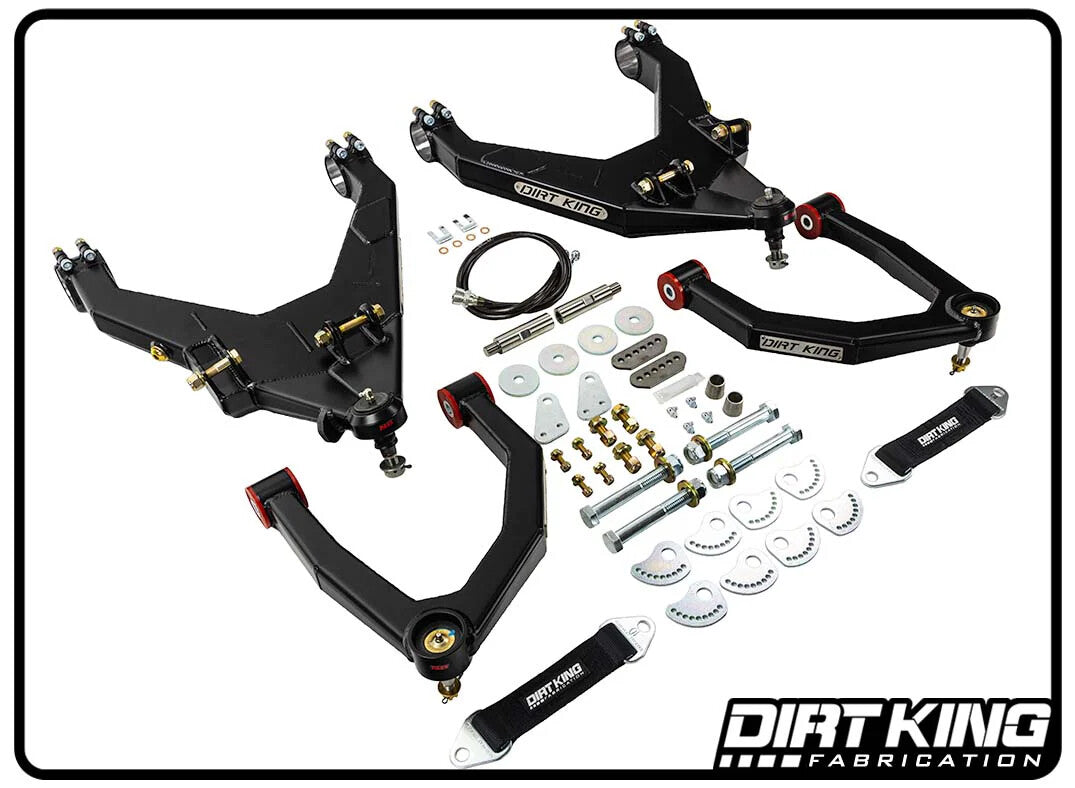

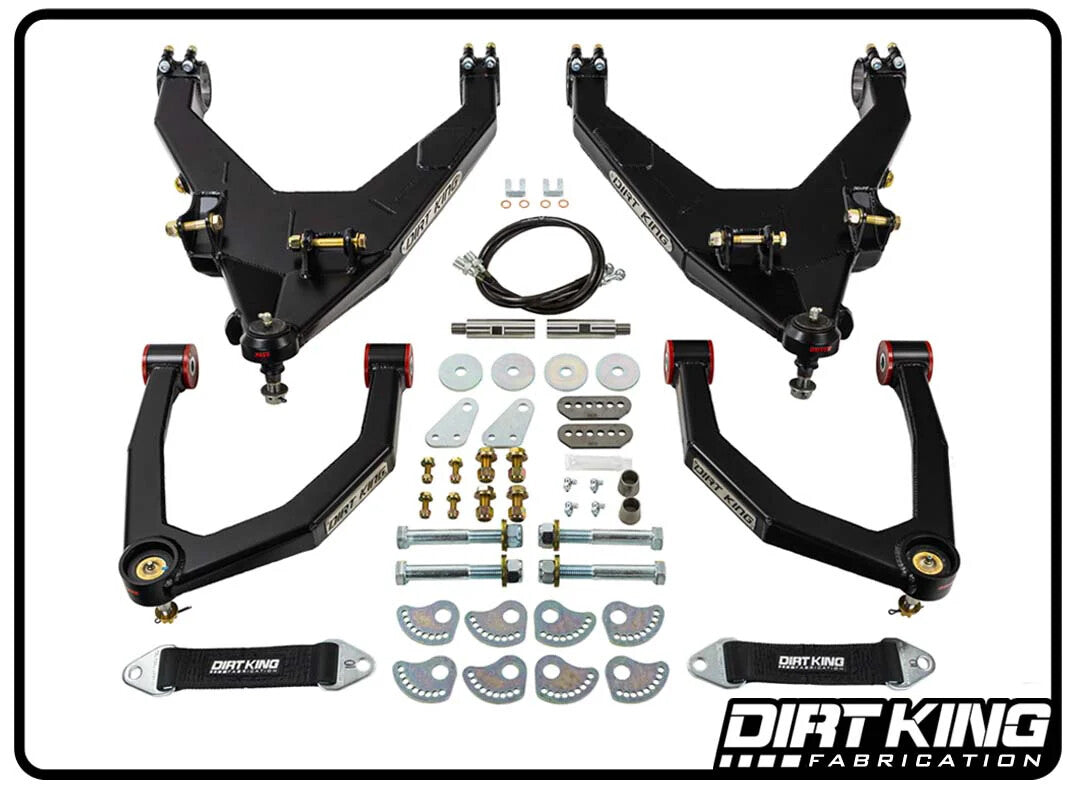

Dirt King L/T Kit w/ Bushing Upper Arms for Chevy GMC 1500 2019-2024 DK-636908-B

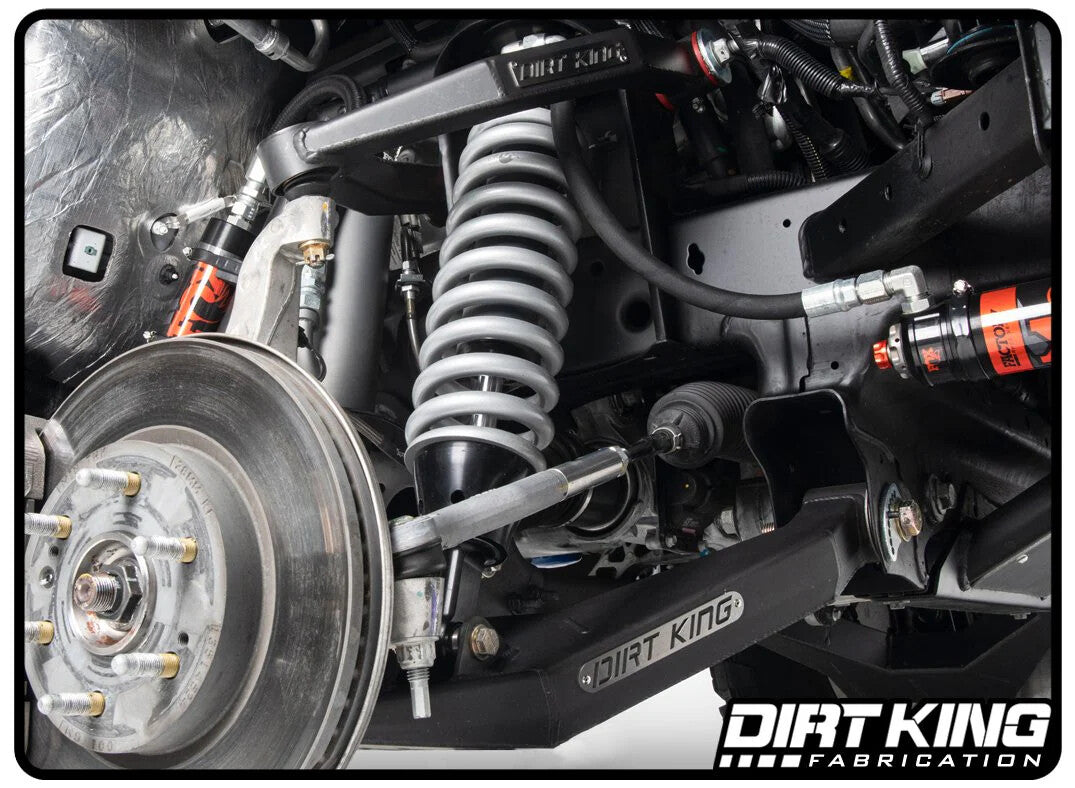

Description The Dirt King long travel kit was developed to drastically improve the vehicles off-road handling without compromising its day to day driving characteristics. This suspension system allows for 12” of travel and accepts up to 37” tires. The kit is compatible with 2WD models and 4WD models along with the purchase of extended axle shafts. Our upper and lower arms are designed with heavy duty Moog ball joints which are low maintenance and easily serviceable. The lower arms are tabbed to accommodate for coilovers, bypasses, bump stops, and limit straps. They also utilize the factory inner bushings for a factory like feel on road while still allowing for enough articulation off-road. Another unique feature only found on our kit is progressive steering stops to limit the steering angle throughout the suspension cycle. This prevents premature wear on the CVs and tie rods at full compression or full extension. This kit is CAD designed, thoroughly tested, and made in America resulting in a product we’re proud to put our name on! Specifications Wheel Travel: 12” Amount of Lift: 0-4” Track Width: 3.5” wider per side Maximum Tire Size: 37” Maximum Backspacing: 4.75” Minimum Rim Size: 17” Coil over Shock Size: 2.5” x 8” Bypass Shock Size: 3.0” x 8” Bump Stop Size: 2.0” x 2.0” What's Included Boxed plate upper control arms Boxed plate lower control arms 10" quad wrapped limit straps Weld on adjustable limit strap mounts 17-4 stainless steel tie rod extensions DOT approved extended brake lines Grade 8 mounting hardware Moog ball joints Features Bolt on application, minimal modifications required Heavy duty low maintenance ball joints Polyurethane bushings for the upper arms. Zinc plated inner bushing sleeves Grease fittings for easy servicing 3/16" and 1/8” boxed plate construction Internally ribbed with extrusions for weight reduction Limit strap tabbing Bypass tabbing
