Dirt King +2" Long Travel Kit for 2010–2024 Toyota 4Runner (2WD/4WD) – DK-814928

+2" per side. Up to 25% more front wheel travel. This is where your 2010–2024 Toyota 4Runner stops pretending and starts playing in real long travel territory. Built for drivers who want race-inspired width, real articulation, and suspension that doesn’t flinch when the terrain gets violent.

This system is engineered to improve off-road handling without wrecking daily drivability, using proven geometry and heavy-duty components designed for real use.

Performance Specifications

• Wheel Travel: Up to 25% increased wheel travel
• Track Width: +2" per side
• Lift Range: 0-3.5"
• Maximum Tire Size: 35"
• Maximum Backspacing: 4.75"
• Minimum Wheel Diameter: 16"
• Coilover Size: Dirt King Spec Coilovers
• Bypass Shock Size: Dirt King Spec Bypasses
• Bump Stop Size: 2.0" x 2.0"

Engineering & Construction

• 2" Wider Per Side: Adds 2" of width per side, boosting suspension travel by 25%.
• Stock Fender Compatibility: Works with stock fenders when using positive offset wheels.
• Aggressive Look Option: Supports zero or negative offset wheels with flared fenders.
• Extended Wheelbase: Allows proper fitment of 35" tires.
• SilentSpin Bushings: Greaseless bushings in upper control arms for low maintenance.
• Delrin Bushings with PTFE: Smooth operation in lower control arms with PTFE-infused Delrin.
• Heavy-Duty Moog Ball Joints: Reliable outer pivots with heavy-duty Moog ball joints.
• Aluminum Skid Plates: Replaceable skid plates protect lower arms on rough trails.
• Flexible Installation: Compatible with coilovers, coilovers with bypasses, or coilovers with bump stops.
• Aluminum Strike Pads: Designed for optimal bump stop engagement.
• Complete Hardware Included: Comes with all necessary mounting hardware.
• Made in the USA: Proudly designed and manufactured in the United States.

Shock & Setup Guidance

• Required coilover size: Dirt King Spec Coilovers (to match proper long travel specs).
• Bypass compatibility: Dirt King Spec Bypasses (advanced damping control and tunability).
• OEM-style replacement coilovers may work with the correct spacers/spring setup, but can limit total wheel travel compared to properly spec-built long travel shocks.
• If you’re unsure what shocks or setup to run, iShock can help you spec the right configuration for your terrain and driving style.

4WD Requirements

• To achieve the full amount of travel on 4WD models you must install the 1” diff drop kit and machine the inner CV’s for more articulation.
• We offer several services for machining CV’s and complete axle assembly.

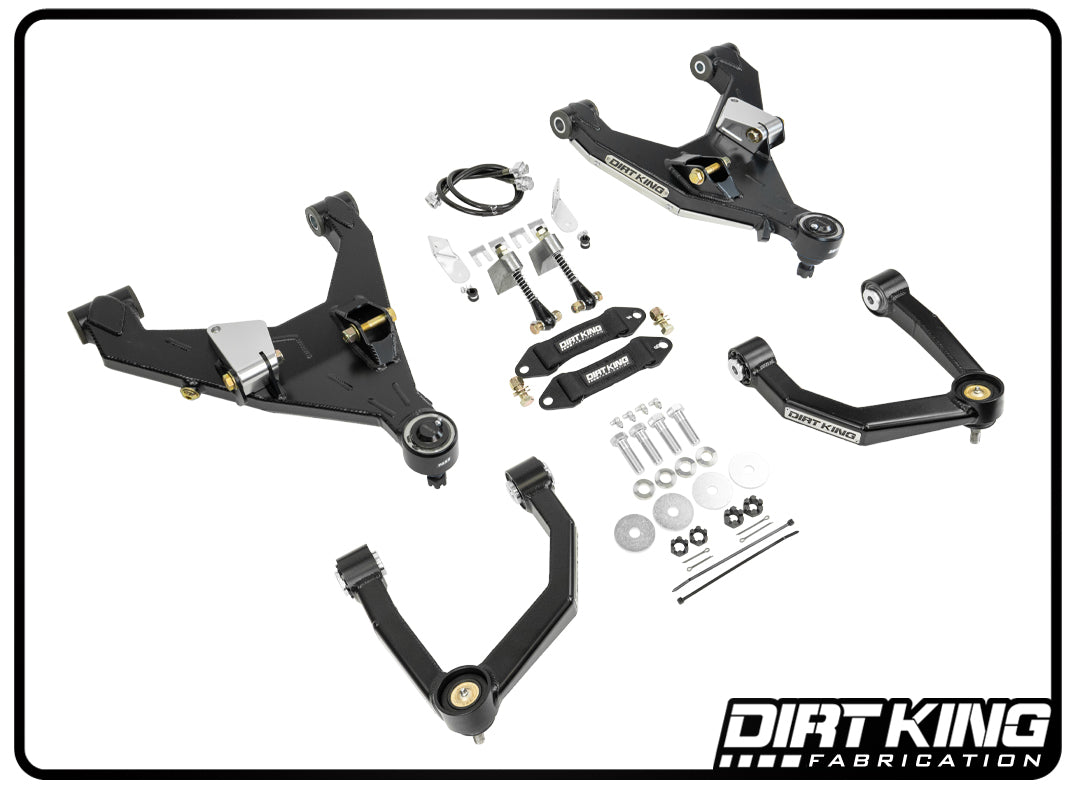

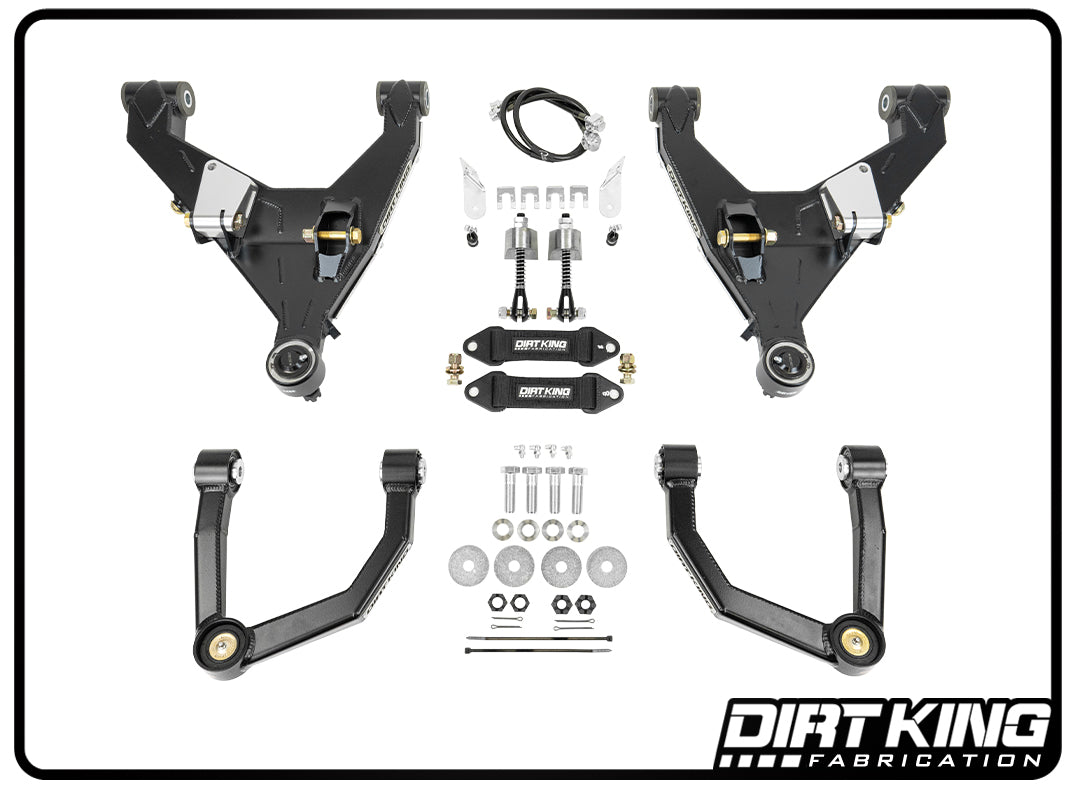

What’s Included

• Boxed plate upper control arms
• Boxed plate lower control arms

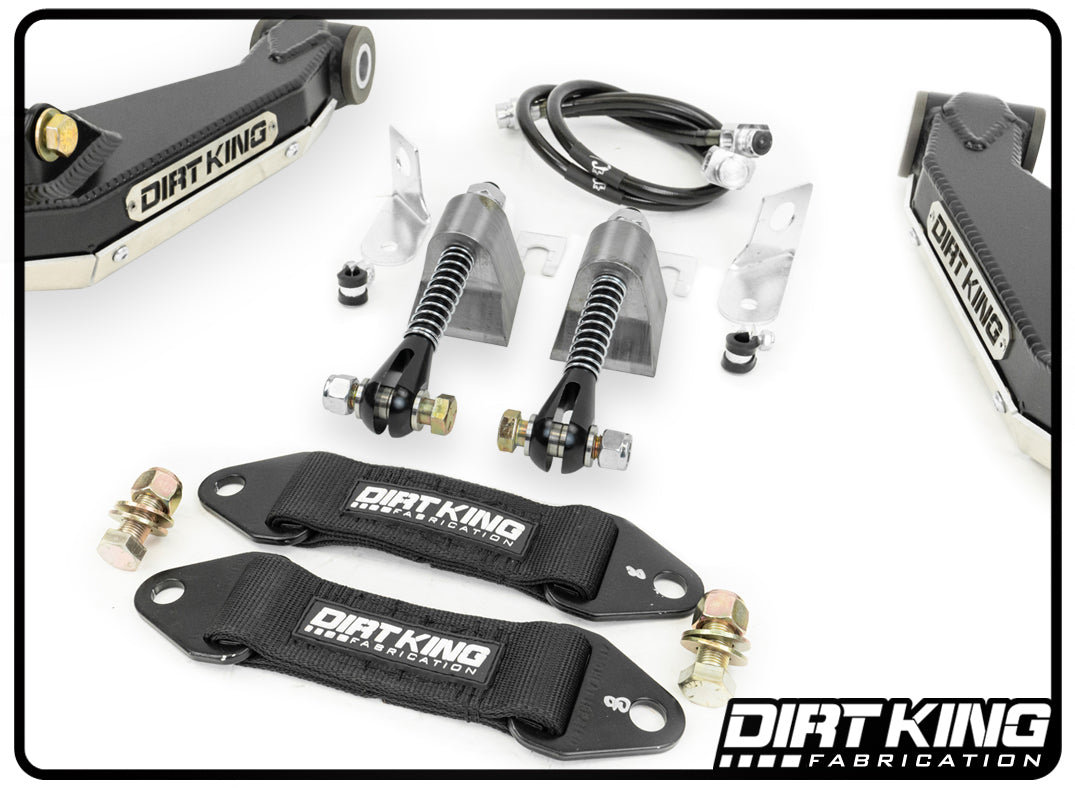

• 8" quad wrapped limit straps
• Weld on adjustable limit strap mounts
• 17-4 stainless steel tie rod extensions
• DOT approved extended brake lines
• Grade 8 mounting hardware
• Billet aluminum bump stop strike pad
• Zinc plated bushing washers
• Installation instructions

Why Buy From iShock?

iShock is a factory-authorized sales, service, and installation center with decades of suspension experience. If you want help pairing shocks, dialing spring rates, or planning a complete long travel build, we’ve got you covered.
